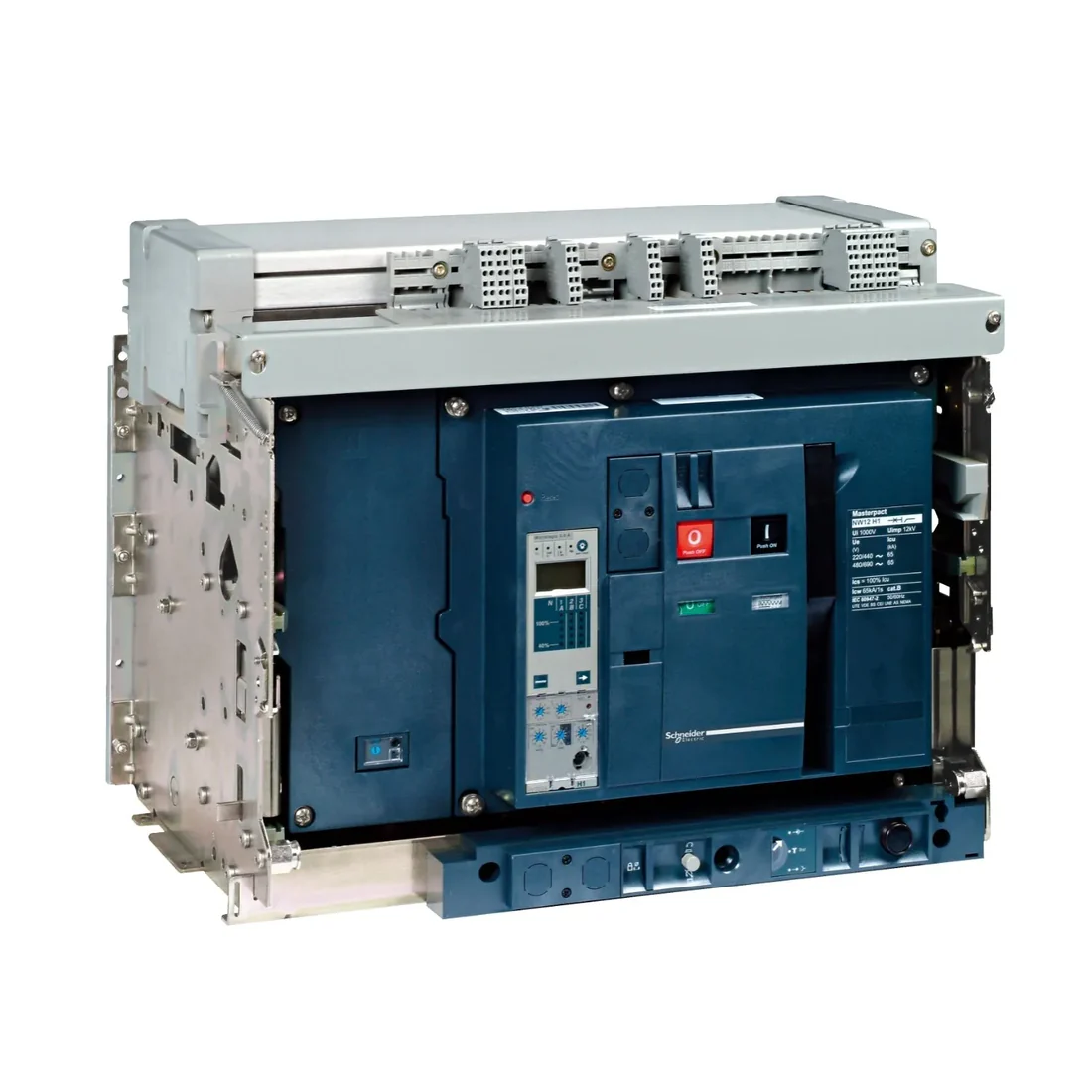

Schneider MasterPact NW08H1 4 Pole 800 A Air Circuit Breaker
₨ 1,090,000
₨ 817,500
- Range: MasterPacT
- Product name: MasterPact NW
- circuit breaker name: MasterPact NW08H1
- Product or component type: Circuit breaker
- Device application: Power distribution protection
- Net weight: 65 kg
- Poles description: 4P
- Neutral position: Left
- Control unit: Without a control unit
- Rated current [In]: 800 A at 40 °C
- Performance type: H1 65 kA 440 V AC
- Rated operational voltage [Ue]: 690 V AC 50/60 Hz
- Suitability for isolation: Yes conforming to EN/IEC 60947-2
Additional information
| Ampere Rating | 800A |
|---|---|
| No of Pole | 4 Pole |
Production Specifications
|
Range
|
masterpact
|
|
product name
|
masterpact nw
|
|
circuit breaker name
|
masterpact nw08h1
|
|
product or component type
|
circuit breaker
|
|
device application
|
power distribution protection
|
|
net weight
|
65 kg
|
|
poles description
|
4p
|
|
neutral position
|
Left
|
|
control unit
|
without control unit
|
|
rated current [in]
|
800 a at 40 °c
|
|
performance type
|
h1 65 ka 440 v ac
|
|
rated operational voltage [ue]
|
690 v ac 50/60 hz
|
|
suitability for isolation
|
yes conforming to en/iec 60947-2
|
|
selectivity category
|
category b
|
|
control type
|
push-button
|
|
mounting mode
|
fixed
|
|
rated ultimate short-circuit breaking capacity [icu]
|
65 ka at 220/415 v ac 50/60 hz / 65 ka at 440 v ac 50/60 hz / 65 ka at 525 v ac 50/60 hz / 65 ka at 690 v ac 50/60 hz
|
|
rated service breaking capacity [ics]
|
65 ka at 220/415 v ac 50/60 hz / 65 ka at 440 v ac 50/60 hz / 65 ka at 525 v ac 50/60 hz / 65 ka at 690 v ac 50/60 hz
|
|
rated short-time withstand current [icw]
|
65 ka 1 s / 36 ka 3 s
|
|
sensor rating
|
400 a, 800 a
|
|
rated insulation voltage [ui]
|
1000 v ac 50/60 hz
|
|
rated impulse withstand voltage [uimp]
|
12 kv
|
|
mounting support
|
backplate rails
|
|
upside connection
|
front rear
|
|
downside connection
|
front rear
|
|
mechanical durability
|
12500 cycles without maintenance / 25000 cycles with maintenance
|
|
standards
|
en/iec 60947-1 / en/iec 60947-2
|
|
ip degree of protection
|
ip30 conforming to iec 60529
|
|
pollution degree
|
4 conforming to iec 60664-1
|
|
ambient air temperature for operation
|
-25…70 °c
|
|
ambient air temperature for storage
|
-40…85 °c
|
|
operating altitude
|
0…2000 m without derating / 2000 m…5000 m with derating
|
Product Details
The MasterPact NW08H1 series offers versatile circuit breaker frames to meet varying current requirements. Choose from three options with current ratings of 800A. Each frame features a robust 4-pole fixed design, ensuring reliable electrical protection. With an impressive interrupting capacity of 65kA at 440VAC 50/60Hz (Icu), these circuit breaker frames are well-suited for demanding industrial applications. Notably, the frames come without a control unit, providing flexibility for integration into systems with external controls. Select the appropriate current rating to meet the specific needs of your electrical protection system.
