Schneider LC1E500M7 TeSys TVS contactor, 4P (4 NO) AC-3 500A 220 V AC Coil
₨ 450,000
₨ 337,500
- Range: Easy TeSys
- Component Type: Contactor
- Device short name: LC1E
- Poles description: 3 Pole
- Net weight: 11.35 kg
- Pole contact composition: 3 NO
- Operational Current Ampere: 500A
- Thermal Current Ampere: 700A
- Capacity: 280 / 375 KW (HP)
Additional information
| Ampere Rating | 500A |
|---|---|
| No of Pole | 3 Pole |
Product Specifications
|
Range of product
|
easy tesys control
|
|
component type
|
contactor
|
|
device short name
|
lc1e
|
|
contactor application
|
resistive load / motor control
|
|
poles description
|
3p
|
|
net weight
|
11.35 kg
|
|
thermal current ampere
|
700a
|
|
capacity
|
280 / 375 kw (hp)
|
|
rated operational voltage [ue]
|
power circuit
|
|
rated operational current [ie]
|
500 a (
|
|
control circuit voltage [uc]
|
220 v ac 50/60 hz
|
|
pole contact composition
|
3 no
|
|
conventional free air thermal current [ith]
|
700 a (at 40 °c)
|
|
rated breaking capacity
|
4000 a at 440 v for power circuit conforming to iec 60947
|
|
average impedance
|
0.18 mohm – ith 700 a 50 hz for power circuit
|
|
overvoltage category
|
iii
|
|
pollution degree
|
3
|
|
mechanical durability
|
4000000 cycles
|
|
control circuit type
|
ac at 50/60 hz
|
|
operating time
|
100…170 ms on opening / 40…75 ms on closing
|
|
maximum operating rate
|
2400 cyc/h 55 °c
|
|
mounting support
|
plate
|
|
operating altitude
|
3000 m without derating
|
|
fire resistance
|
850 °c conforming to iec 60695-2-1
|
Product Details
EasyPact TVS contactor 3 poles for motor applications up to 500A 295kW@440V. It provides a 220V 50/60Hz AC coil, without built-in auxiliary contacts, power and control connections by screw clamp terminals. 233mm width for standard operating rates up to 2400 cycles per hour. It procures standard reliability and durability with 0.6 Mcycles electrical durability AC-3 and 4 Mcycles mechanical durability. It can cover -5°C to 55°C working temperature and mounted by DIN-rail, No derating up to 3000m altitude. Multi-standards certified (IEC, CCC, EAC) and Green Premium compliant (RoHs/Reach).
User Manual
Be the first to review “Schneider LC1E500M7 TeSys TVS contactor, 4P (4 NO) AC-3 500A 220 V AC Coil”
Related products
-
- Magnetic Contactors and Overload Relays, Overload Relays

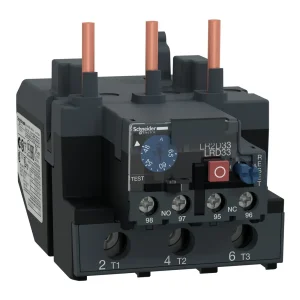

Schneider LRD3359 TeSys Deca Thermal Overload Relay – 48…65 A
-
₨ 33,000
₨ 24,750 - Select options This product has multiple variants. The options may be chosen on the product page
-
- Magnetic Contactors and Overload Relays, Overload Relays

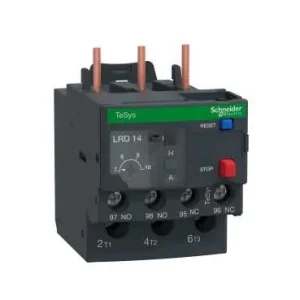

Schneider LRD14 TeSys Deca Thermal Overload Relay – 7…10 A
-
