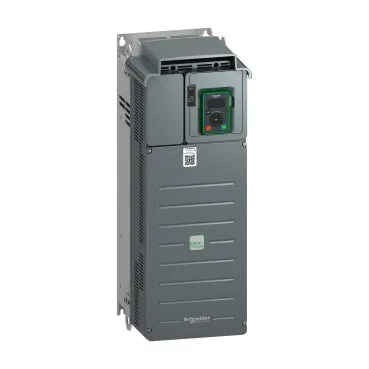

Schneider Variable Speed Drive Altivar 610 Series,37kW, 50hp
- High-performance control for 37kW (50HP) motors
- Optimized for reducing energy consumption and operating costs
- Includes vector control and V/F control
- Robust design for industrial environments with protection against overload, overvoltage, and short circuit
- Panel or DIN rail
- Modbus, CANopen, and more for seamless integration with existing systems
- User-friendly interface with an intuitive keypad and display
- Remote monitoring and diagnostics for ease of maintenance
- Wide voltage range compatibility with both single-phase and three-phase inputs
Product Specifications
|
Power rating
|
37kw / 50hp
|
|
input voltage
|
three-phase 380–480v ac output frequency range
|
|
control modes
|
vector control, v/f control
|
|
display
|
led/lcd interface with real-time status and setup options
|
|
communication ports
|
modbus, canopen, ethernet/ip, profibus dp (optional)
|
|
protection features
|
overload, short circuit, under-voltage, thermal, and motor protection
|
|
mounting type
|
din rail or panel
|
|
certifications
|
ce, ul, rohs, iec
|
|
typical applications
|
pumps, fans, hvac systems, conveyors, material handling, compressors, and general industrial applications
|
Product Details
This Easy Altivar 610 drive is a frequency inverter for three-phase asynchronous motors. It works at a rated supply voltage from 380V to 415V AC. It is suitable for motors with power rating up to 37kW / 50hp for applications requiring slight overload (up to 120%). It is suitable for motors with power rating up to 30kW / 40hp for applications requiring significant overload (up to 150%). It offers a plug & play solution, whereby parameters are preset in the factory to the desired configuration, to help save process control and operating time. It has integrated radio interference input filters in accordance with the EMC standard for variable speed electrical power drive “products” IEC/EN 61800-3, edition 2, category C3 in environment 1 or 2. It weighs 26.8kg and its dimensions are, 226mm wide, 613mm high, 271mm deep. this drive has been specially designed for standard applications in the market segments water and wastewater and oil and gas and in the domains process and machine management and building management.
