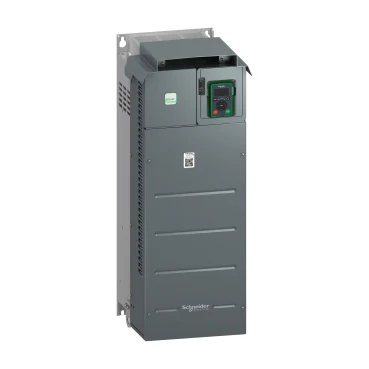

Schneider Variable Speed Drive Altivar 610 Series,110 kW, 150HP
- 110kW / 150HP for heavy-duty operations
- Supports V/F, sensorless vector, and torque control
- Optimized motor efficiency with reduced energy usage
- Safeguards against overvoltage, overload, short circuits, and overheating
- Modbus, CANopen, and optional communication modules
- Simple setup and diagnostics via built-in keypad or remote panel
- Reduces electrical interference for stable operation
- Ideal for space-constrained and harsh industrial settings
Product Specifications
|
Series
|
altivar 610 (atv610)
|
|
power rating
|
110kw / 150hp
|
|
voltage range
|
380–480v ac (three-phase)
|
|
frequency range
|
0–400hz
|
|
control modes
|
v/f control sensorless vector control torque control
|
|
display
|
lcd or led for configuration and monitoring
|
|
protection features
|
overload overvoltage phase loss overheating short circuit
|
|
mounting
|
panel or wall mount
|
|
certifications
|
ce, ul, csa, rohs
|
|
communication protocols
|
modbus rtu, canopen (others via optional cards)
|
|
applications
|
water and wastewater treatment hvac systems conveyors pumps and compressors industrial processing systems
|
Product Details
This Easy Altivar 610 drive is a frequency inverter for three-phase asynchronous motors. It works at a rated supply voltage from 380V to 415V AC. It is suitable for motors with power ratings up to 110 kW/150 hp for applications requiring slight overload (up to 120%). It is suitable for motors with a power rating up to 90 kW/125 hp for applications requiring significant overload (up to 150%). It offers a plug & play solution, whereby parameters are preset in the factory to the desired configuration to help save process control and operating time. It has integrated radio interference input filters in accordance with the EMC standard for variable speed electrical power drive “products” IEC/EN 61800-3, edition 2, category C3 in environment 1 or 2. It weighs 82kg and its dimensions are 320mm wide, 852mm high, and 390mm deep. This drive has been specially designed for standard applications in the market segments of water and wastewater and oil and gas and in the domains of process and machine management and building management.
