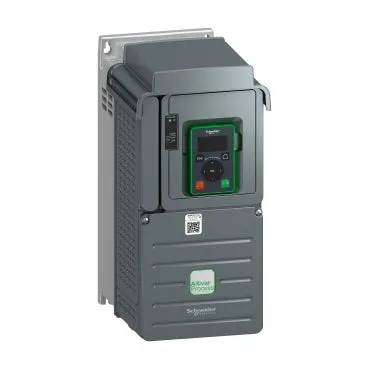

Schneider Variable Speed Drive Altivar 610 Series, 15 kW / 20HP
- first”>Advanced motor control for 15kW / 20HP applications
- Designed for HVAC, water treatment, and heavy-duty industrial use
- High energy efficiency with adjustable frequency drive technology
- Built-in EMC filters and thermal protection
- Wide voltage range and robust overload handling
- Integrated display for easy setup and monitoring
- Remote monitoring and communication-ready (Modbus, Ethernet)
- Complies with global safety and environmental standards
Product Specifications
|
Power rating
|
15kw / 20hp
|
|
input voltage
|
three-phase 380–480v ac
|
|
output frequency
|
0.1–500hz
|
|
control type
|
sensorless vector and v/f
|
|
enclosure rating
|
ip20 (standard); higher protection available on request
|
|
display
|
integrated led/lcd interface
|
|
communication protocols
|
modbus rtu, ethernet/ip, canopen
|
|
protection functions
|
overload, short-circuit, overvoltage, undervoltage, overheating
|
|
certifications
|
ce, ul, csa, rohs
|
|
mounting options
|
wall or cabinet mounting
|
Product Details
This Easy Altivar 610 drive is a frequency inverter for three-phase asynchronous motors. It works at a rated supply voltage from 380V to 415V AC. It is suitable for motors with power rating up to 15kW / 20hp for applications requiring slight overload (up to 120%). It is suitable for motors with power rating up to 11kW / 15hp for applications requiring significant overload (up to 150%). It offers a plug & play solution, whereby parameters are preset in the factory to the desired configuration, to help save process control and operating time. It has integrated radio interference input filters in accordance with the EMC standard for variable speed electrical power drive “products” IEC/EN 61800-3, edition 2, category C3 in environment 1 or 2. It weighs 7.2kg and its dimensions are, 171mm wide, 360mm high, 233mm deep. this drive has been specially designed for standard applications in the market segments water and wastewater and oil and gas and in the domains process and machine management and building management.
