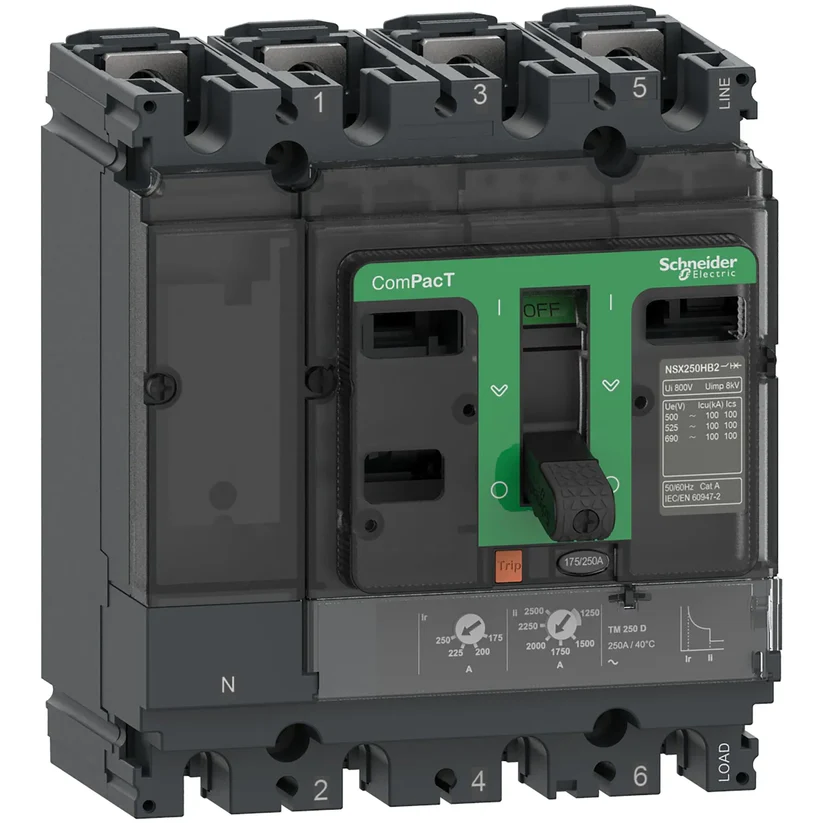

Schneider NSX160F 4 Pole Molded Case Circuit Breaker, 36 kA
₨ 70,000 – ₨ 90,000
₨ 52,500 – ₨ 67,500
- Range: CornPacT new generation
- Product name: ComPacT NSX new generation
- Product or component type: Circuit breaker
- Device application: Distribution
- Poles description: 4P
- Protected poles description: 3D
- Neutral position: Left
- Network type: AC
- Network frequency: 50/60 Hz
Additional information
| Ampere Rating | 125A, 160A |
|---|---|
| No. of Pole | 4 Pole |
Product Specifications
|
Range
|
cornpact new generation
|
|
product name
|
compact nsx new generation
|
|
product or component type
|
circuit breaker
|
|
device application
|
distribution
|
|
poles description
|
4p
|
|
protected poles description
|
3d
|
|
neutral position
|
left
|
|
[in] rated current
|
125 a at 40 oc
|
|
[uel rated operational voltage
|
690 v ac 50/60 hz
|
|
network type
|
ac
|
|
network frequency
|
50/60 hz
|
|
suitability for isolation
|
yes conforming to en/iec 60947-2
|
|
utilisation category
|
category a
|
|
[icu] rated ultimate short-circuit breaking capacity
|
36 ka icu at 380/415 v ac 50/60 hz conforming to iec 60947-2
|
|
performance level
|
f36ka415vac
|
|
trip unit name
|
tm-d
|
|
trip unit technology
|
thermal-magnetic
|
|
trip unit protection functions
|
li
|
|
control type
|
toggle
|
|
circuit breaker mounting mode
|
fixed
|
|
[ui] rated insulation voltage
|
800 v ac 50/60 hz
|
|
[uimpj rated impulse withstand voltage
|
8 kv
|
|
mechanical durability
|
40000 cycles
|
|
electrical durability
|
40000 cycles at 440 v in/2 / 20000 cycles at 440 v in / 15000 cycles at 690 v in/2 / 7500 cycles at 690 v in
|
|
net weight
|
2.6 kg
|
|
standards
|
en/iec 60947
|
|
product certifications
|
ccc, eac, marine
|
|
overvoltage category
|
class ii
|
|
electrical shock protection class
|
class ii
|
|
pollution degree
|
3 conforming to iec 60664-1
|
|
ip degree of protection
|
ip40 conforming to iec 60529
|
|
1k degree of protection
|
ik07 conforming to iec 62262
|
|
ambient air temperature for operation
|
– 25…70 c
|
|
ambient air temperature for storage
|
-50…85 c
|
|
relative humidity
|
0…95 0/0
|
|
operating altitude
|
0.-.2000 m without derating / 2000 m…5000 m with derating
|
Product Details
This ComPacT NSX160F is a complete 4P 3d fixed circuit breaker designed to optimize space and breaking capacity. It is an optimal choice for all standard and specific applications. The breaking capacity (Icu) is 36kA rms at 415VAC 50/60Hz. The operational voltage is 690VAC 50/60Hz. This product embeds a 125A, 160A rating thermal-magnetic trip unit (TMD). TMD trip unit provides adjustable thermal overload protection and fixed magnetic protection. This 4-pole version (140mm x 161mm x 86mm) comes with a variety of optional functions and accessories. It is compliant with international standards (IEC 60947), CCC, EAC, and marine specifications. ComPacT NSX160F is part of Schneider Electric EcoStruxure Power architecture.
