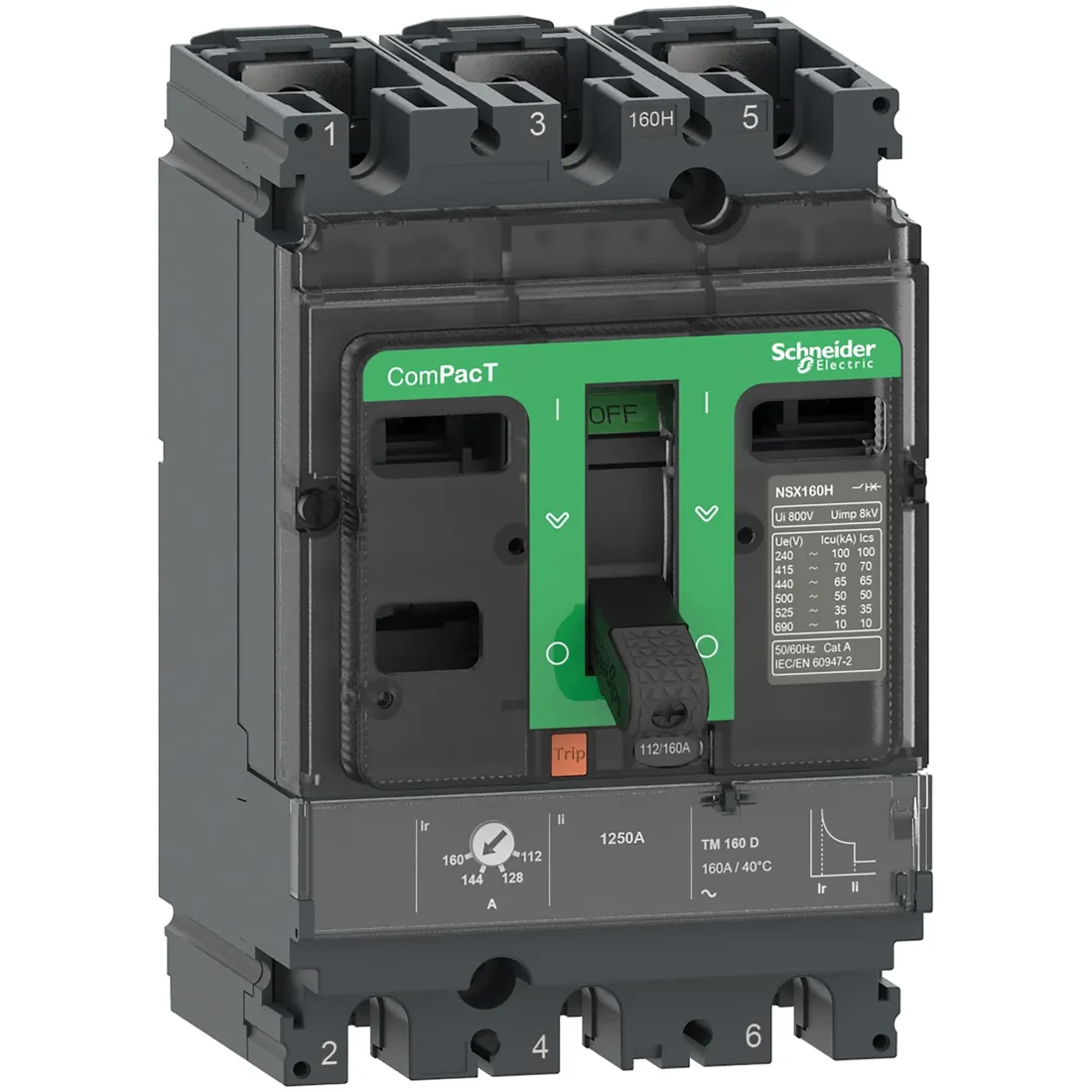

Name: Schneider NSX100F 3 Pole Molded Case Circuit Breaker, 36 kA
SKU: 941
Availability: InStock

Schneider NSX100F 3 Pole Molded Case Circuit Breaker, 36 kA

~~₨ 34,000~~
₨ 25,500

Range: ComPacT new generation
Color: Black
device short name: NSXIOOF
Product or component type: Circuit breaker
Device application: Distribution
Poles description: 3P
Protected poles description: 3D
[In] rated current: 16 A at 40 ocT
[Uel rated operational voltage: 690 V AC 50/60 Hz
Network type: AC
Network frequency: 50/60 Hz
Suitability for isolation: Yes conforming to EN/IEC 60947-2
[Icu] rated ultimate short-circuit breaking capacity: 36 kA

Ampere Rating

No of Pole

Clear

Request a Quote

SKU: N/A Categories: Circuit Breakers, Molded Case Circuit Breakers

Additional information

Ampere Rating	16A, 25A, 32A, 40A, 50A, 63A, 80A, 100A
No of Pole	3 Pole

Product Specification

Range	compact new generation
device short name	nsxioof
product or component type	circuit breaker
device application	distribution
poles description	3p
protected poles description	3d
[in] rated current	16 a at 40 oct
[uel rated operational voltage	690 v ac 50/60 hz
network type	ac
network frequency	50/60 hz
suitability for isolation	yes conforming to en/iec 60947-2
utilisation category	category a
[icu] rated ultimate short-circuit breaking
Capacity	36 ka
performance level	f 36 ka 415 v ac
trip unit name	tm-d
trip unit technology	thermal-magnetic
trip unit protection functions	li
control type	toggle
circuit breaker mounting mode	fixed
mechanical durability	50000 cycles
electrical durability	50000 cycles at 440 v in/2 / 30000 cycles at 440 v in / 20000 cycles at 690 v in/2 / 10000 cycles at 690 v in
power dissipation per pole	2.92 w
mounting support	backplate
mounting position	horizontal and vertical flat on the back
upside connection	front
downside connection	front
trip unit rating	16 a at 40 °c
net weight	2.05 kg

Product Details

This ComPacT NSX100F is a complete 3P 3d fixed circuit breaker designed to optimize space and breaking capacity. It is an optimal choice for all standard and specific applications. The breaking capacity (Icu) is 36kA rms at 415VAC 50/60Hz. The operational voltage is 690VAC 50/60Hz. This product embeds a 16 A, 25 A, 32 A, 40 A, 50 A, 63 A, 80 A, 100 A rating thermal-magnetic trip unit (TMD). TMD trip unit provides adjustable thermal overload protection and fixed magnetic protection. This 3-pole version (105mm x 161mm x 86mm) comes with a variety of optional functions and accessories. It is compliant with international standards (IEC 60947), CCC, EAC, and marine specifications. ComPacT NSX100F is part of Schneider Electric EcoStruxure Power architecture.
