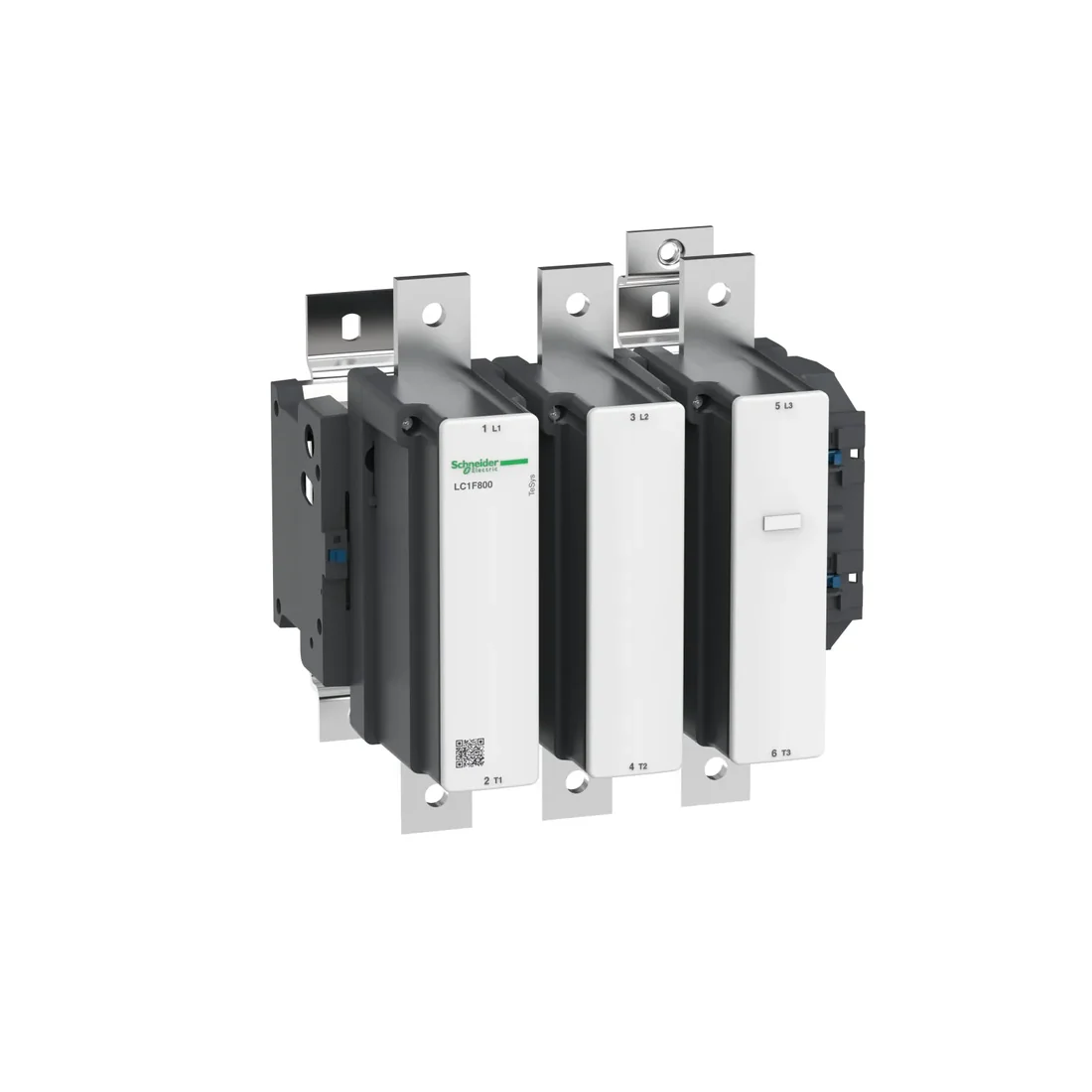

Name: Schneider LC1F800 TeSys F Contactor, 3P (3 NO) AC-3 800 A 220 V AC Coil
SKU: 1577
Availability: InStock

Schneider LC1F800 TeSys F Contactor, 3P (3 NO) AC-3 800 A 220 V AC Coil

~~₨ 1,090,000~~
₨ 817,500

Range: TeSys F
Component Type: Contactor
Device short name: LC1F
Poles description: 3 Pole
Pole contact composition: 3 NO
Operational Current Ampere: 800A
Thermal Current Ampere: 1000A
Capacity: 450 / 600 KW (HP)
Net weight: 18.75 kg

Ampere Rating

No of Pole

Clear

Request a Quote

SKU: N/A Categories: Contactors, Magnetic Contactors and Overload Relays

Additional information

Ampere Rating	800A
No of Pole	3 Pole

Product Specifications

Range of product	tesys f
component type	contactor
device short name	lc1f
contactor application	resistive load / motor control
poles description	3p
thermal current ampere	1000
capacity	450 / 600 kw (hp)
rated operational voltage [ue]	<= 1000 v ac 50/60 hz <= 460 v dc
rated operational current [ie]	1000 a (at <40 °c) at <= 440 v ac ac-1 / 800 a (at <55 °c) at <= 440 v ac ac-3
control circuit voltage [uc]	110…400 v ac 40…400 hz with lx1/lx9 coil / 110…400 v dc with lx4 coil / 100…250 v ac 50/60 hz with lxe coil / 100…380 v dc with lxe coil
net weight	18.75 kg
compatibility code	lc1f
pole contact composition	3 no
conventional free air thermal current [ith]	000 a (at 40 °c)
rated breaking capacity	6400 a conforming to iec 60947-4-1
average impedance	0.12 mohm – ith 1000 a 50 hz
overvoltage category	iii
mechanical durability	5 mcycles
heat dissipation	25 w / 2.2…5.5 w
operating time	60…80 ms closing for with lx1/lx9 coil / 160…180 ms opening for with lx1/lx9 coil / 60…80 ms closing for with lx4 coil / 40…50 ms opening for with lx4 coil / 40…80 ms closing for with lxe coil / 6…54 ms opening for with lxe coil
/ mounting support	plate
operating altitude	3000 m without derating

Product Details

TeSys F contactor, 3 poles (3NO), 800A/1000V AC-3, for motor applications up to 450kW@400V. Contactor with no coil to allow a later selection and installation (coil to be ordered separately), it provides bolt terminals for bars or cables with lugs. For high operating rates until 600 cycles/hour and environments until 55°C, it procures high reliability and durability. It makes installation and maintenance easy thanks to a drawer for insertion of the selected coil and a large choice of add-on blocks and accessories (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, Marine), Green Premium compliant (RoHS/REACh).
