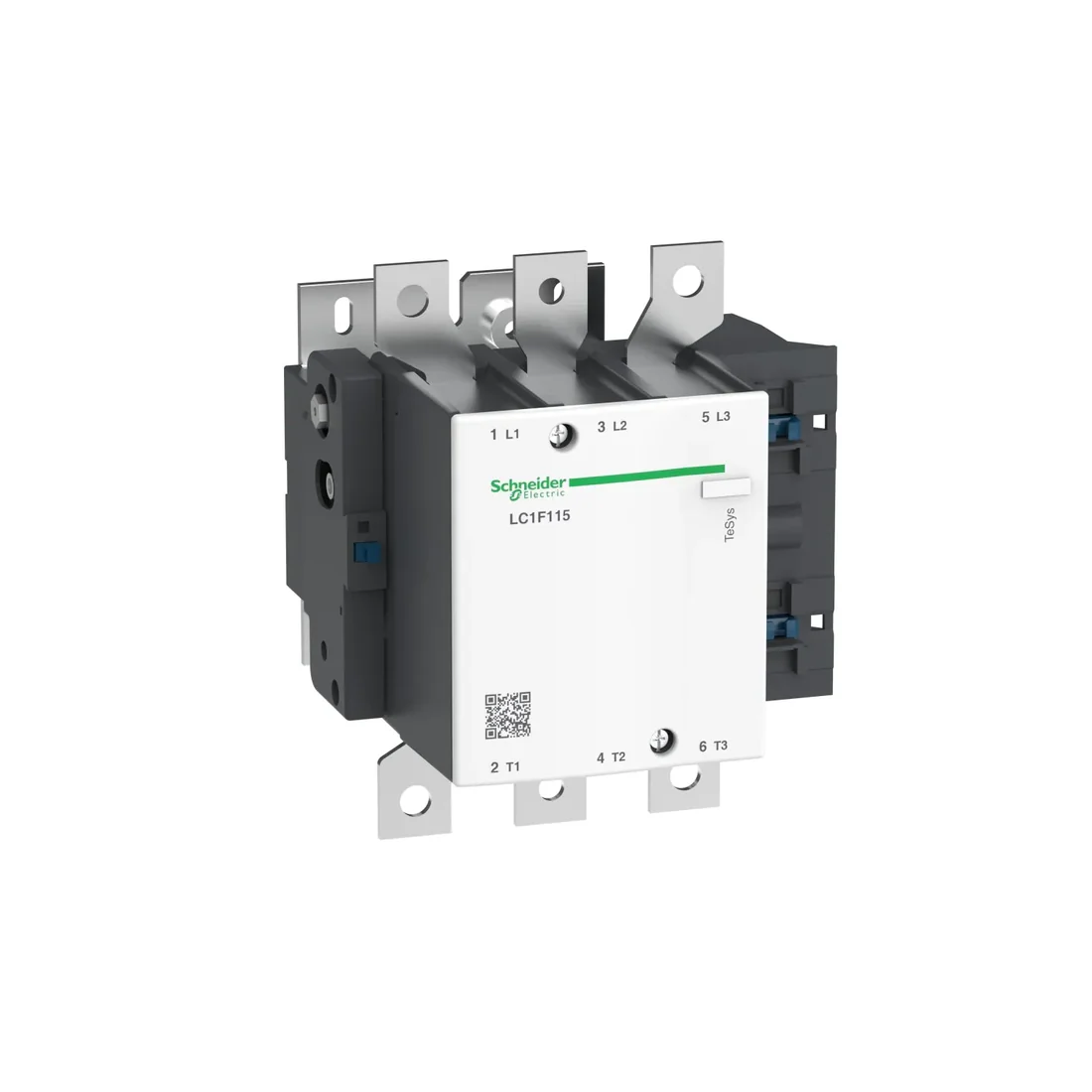

Name: Schneider LC1F115 TeSys F Contactor, 3P (3 NO) AC-3 115 A 220 V AC Coil
SKU: 1619
Availability: InStock

Schneider LC1F115 TeSys F Contactor, 3P (3 NO) AC-3 115 A 220 V AC Coil

~~₨ 92,000~~
₨ 69,000

Range: TeSys F
Model: LC1F
Component Type: Contactor
Device short name: LC1F
Poles description: 3 Pole
Pole contact composition: 3 NO
Operational Current Ampere: 115A
Thermal Current Ampere: 200 A
Capacity: 59 / 77 KW (HP)
Net weight: 3.43 kg

Ampere Rating

No of Pole

Clear

Request a Quote

SKU: N/A Categories: Contactors, Magnetic Contactors and Overload Relays

Additional information

Ampere Rating	115A
No of Pole	3 Pole

Product Specifications

Range of product	tesys f
component type	contactor
device short name	lc1f
contactor application	motor control
poles description	3p
thermal current ampere	200
capacity	59 / 77 kw (hp)
rated operational voltage [ue]	<= 690 v ac 50/60 hz <= 460 v dc
rated operational current [ie]	200 a (at <40 °c) at <= 440 v ac-1 / 115 a (at <55 °c) at <= 440 v ac-3
control circuit voltage [uc]	220 v ac 40…400 hz
net weight	3.43 kg
compatibility code	lc1f
pole contact composition	3 no
conventional free air thermal current [ith]	200 a (at 40 °c)
rated breaking capacity	920 a conforming to iec 60947-4-1
average impedance	0.37 mohm – ith 200 a 50 hz
overvoltage category	iii
mechanical durability	10 mcycles
control circuit type	ac at 40…400 hz
heat dissipation	5.9…7.2 w
operating time	35 ms closing (at uc) / 130 ms opening (at uc)
mounting support	plate
operating altitude	3000 m without derating

Product Details

TeSys F contactor, 3 poles (3NO), 115A/690V AC-3, for motor applications up to 55kW@400V. It provides a low sealed consumption 220V 40-400Hz AC coil, bolt terminals for bars or cables with lugs. For high operating rates until 2400 cycles/hour and environments until 55°C, it procures high reliability and durability. It makes installation and maintenance easy thanks to its drawer-mounted coil and a large choice of add-on blocks and accessories (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).
