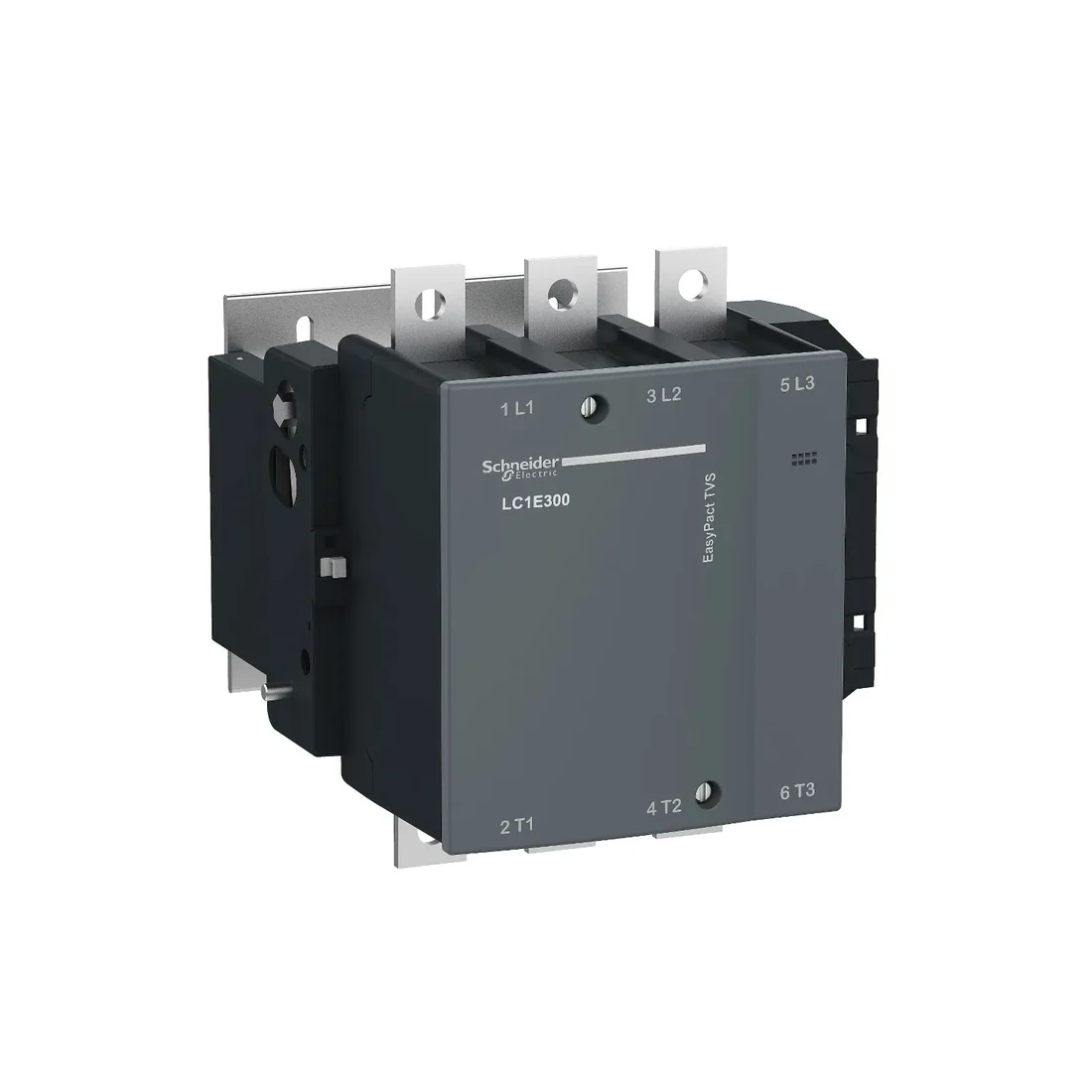

Name: Schneider LC1E300M5 TeSys TVS contactor, 4P (4 NO) AC-3 300A 220 V AC Coil
SKU: 1242
Availability: InStock

Schneider LC1E300M5 TeSys TVS contactor, 4P (4 NO) AC-3 300A 220 V AC Coil

~~₨ 190,000~~
₨ 142,500

Range: Easy TeSys
Component Type: Contactor
Device short name: LC1E
Poles description: 3 Pole
Net weight: 8.5 kg
Pole contact composition: 3 NO
Operational Current Ampere: 300A
Thermal Current Ampere: 320A
Capacity: 160 / 215 KW (HP)

Ampere Rating

No of Pole

Clear

Request a Quote

SKU: N/A Categories: Contactors, Magnetic Contactors and Overload Relays

Additional information

Ampere Rating	300A
No of Pole	3 Pole

Product Specifications

Range of product	easy tesys control
component type	contactor
device short name	lc1e
contactor application	resistive load / motor control
poles description	3p
net weight	8.5 kg
thermal current ampere	320a
capacity	160 / 215 kw (hp)
rated operational voltage [ue]	power circuit
rated operational current [ie]	300 a (
control circuit voltage [uc]	220 v ac 50/60 hz
pole contact composition	3 no
conventional free air thermal current [ith]	320 a (at 40 °c)
rated breaking capacity	2400 a at 440 v for power circuit conforming to iec 60947
average impedance	0.3 mohm – ith 320 a 50 hz for power circuit
overvoltage category	iii
pollution degree	3
mechanical durability	5000000 cycles
control circuit type	ac at 50/60 hz
operating time	40…65 ms on closing / 100…170 ms on opening
maximum operating rate	1200 cyc/h 55 °c
mounting support	plate
operating altitude	3000 m without derating
fire resistance	850 °c conforming to iec 60695-2-1

Product Details

EasyPact TVS contactor 3 poles for motor applications up to 300A 185kW@440V. It provides a 220V 50Hz AC coil, without built-in auxiliary contacts, power and control connections by screw clamp terminals. 213mm width for standard operating rates up to 1200 cycles per hour. It procures standard reliability and durability with 0.5 Mcycles electrical durability AC-3 and 5 Mcycles mechanical durability. It can cover -5°C to 55°C working temperature and mounted by DIN-rail, No derating up to 3000m altitude. Multi-standards certified (IEC, CCC, EAC) and Green Premium compliant (RoHs/Reach).
