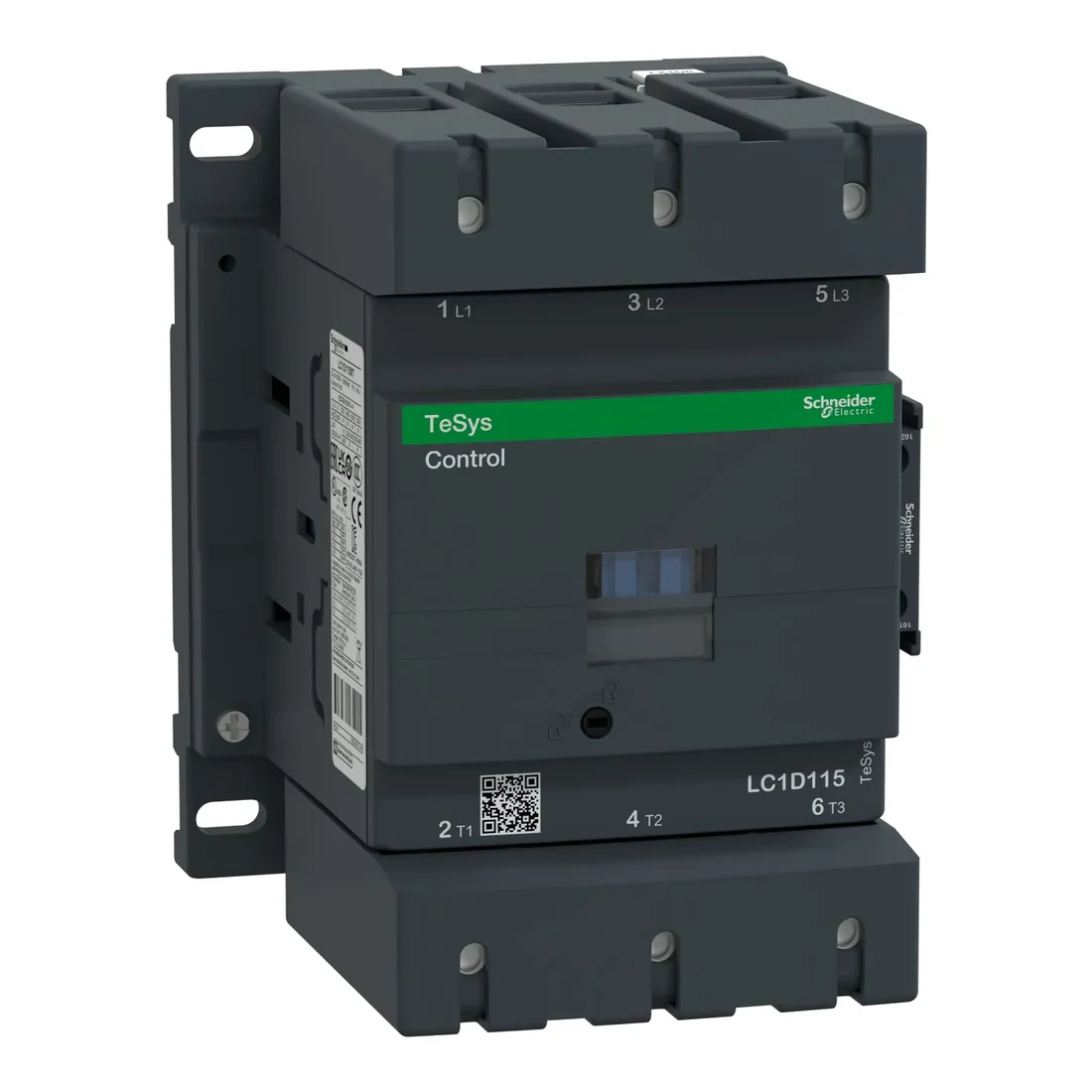

Schneider LC1D115 TeSys D Contactor, 3P (3 NO) AC-3 115 A 220 V AC Coil
₨ 66,000
₨ 49,500
- Range: TeSys Deca
- Model: LC1D
- Component Type: Contactor
- Device short name: LC1D
- Poles description: 3 Pole
- Pole contact composition: 3 NO
- Auxiliary contact composition: 1 NO + 1 NC
- Operational Current Ampere: 115A
- Thermal Current Ampere: 200 A
- Capacity: 59 / 77 KW (HP)
- Net weight: 2.5 kg
Additional information
| Ampere Rating | 115A |
|---|---|
| No of Pole | 3 Pole |
Product Specifications
|
Range of product
|
tesys deca
|
|
component type
|
contactor
|
|
device short name
|
lc1d
|
|
contactor application
|
motor control
|
|
poles description
|
3p
|
|
thermal current ampere
|
200
|
|
capacity
|
59 / 77 kw (hp)
|
|
rated operational voltage [ue]
|
power circuit; <= 1000 v ac 25…400 hz / power circuit; <= 300 v dc
|
|
rated operational current [ie]
|
200 a
|
|
control circuit voltage [uc]
|
220 v ac 50/60 hz
|
|
net weight
|
2.5 kg
|
|
compatibility code
|
lc1d
|
|
pole contact composition
|
3 no
|
|
contact compatibility
|
m13
|
|
protective cover
|
with
|
|
conventional free air thermal current [ith]
|
200 a (at 60 °c) for power circuit
|
|
rated breaking capacity
|
1100 a at 440 v for power circuit conforming to iec 60947
|
|
average impedance
|
0.6 mohm – ith 200 a 50 hz for power circuit
|
|
overvoltage category
|
iii
|
|
pollution degree
|
3
|
|
mechanical durability
|
8 mcycles
|
|
control circuit type
|
ac at 50/60 hz standard
|
|
heat dissipation
|
3…8 w at 50/60 hz
|
|
operating time
|
6…20 ms opening / 20…50 ms closing
|
|
auxiliary contact composition
|
1 no + 1 nc
|
|
signalling circuit frequency
|
25…400 hz
|
|
minimum switching voltage
|
17 v for signalling circuit
|
|
minimum switching current
|
5 ma for signalling circuit
|
|
insulation resistance
|
> 10 mohm for signalling circuit
|
|
mounting support
|
plate rail
|
|
operating altitude
|
0…3000 m
|
|
fire resistance
|
850 °c conforming to iec 60695-2-1
|
|
flame retardance
|
v1 conforming to ul 94
|
Product Details
TeSys Deca contactor, 3 poles (3NO), for motor control applications up to 115A/1000V AC-3 (55kW@400V). It provides a 220V 50/60Hz AC coil with transient suppressor module, 1NO+1NC built-in auxiliary contacts (NC mirrror certified), power connection by screw connectors 2 inputs, control connection by screw clamp terminals. For operating rates until 2400 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (120mm width), mounting on 2 DIN-rails or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).
