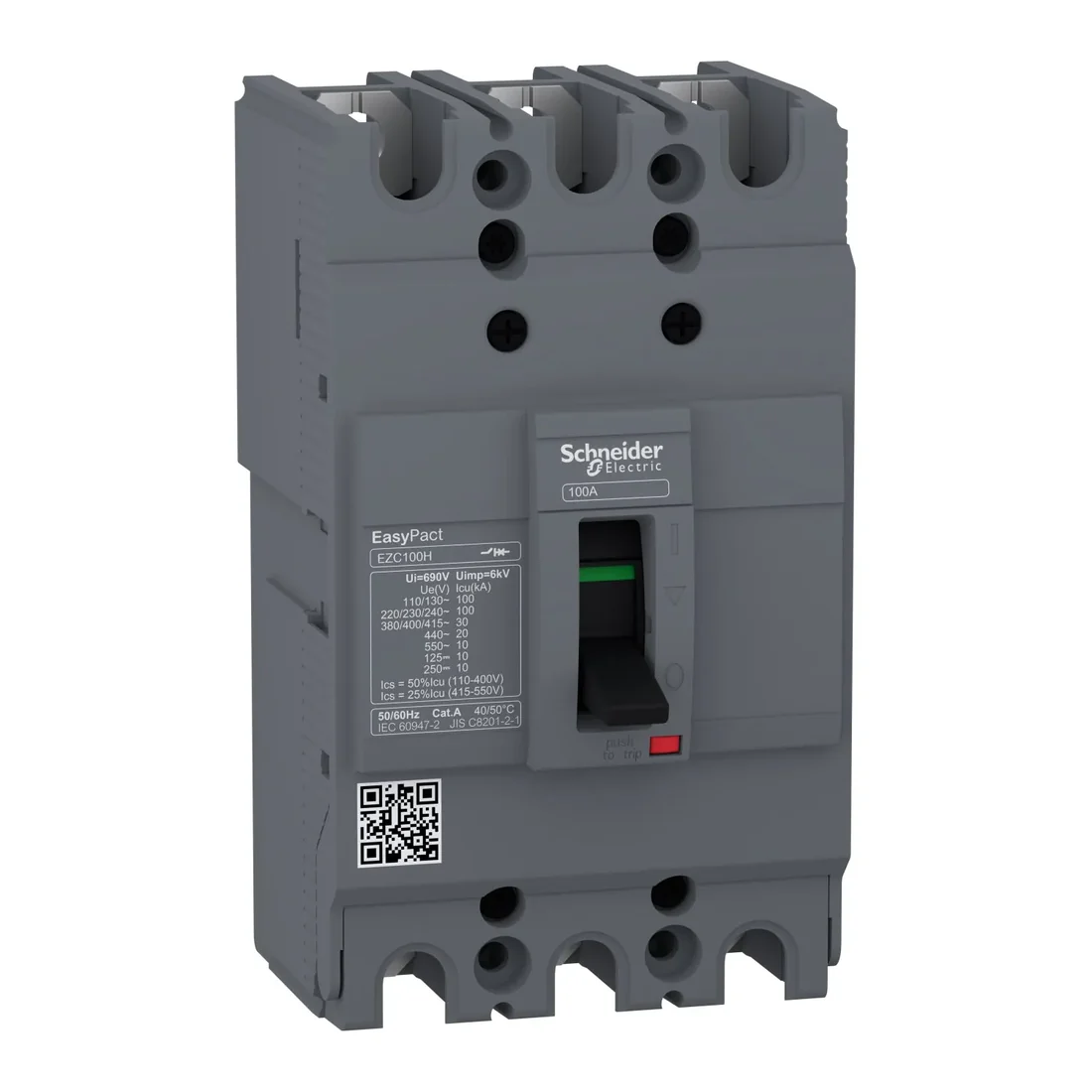

Name: Schneider EZC100H 3 Pole Molded Case Circuit Breaker, 30 kA
SKU: 862
Availability: InStock

Schneider EZC100H 3 Pole Molded Case Circuit Breaker, 30 kA

~~₨ 24,000~~
₨ 18,000

Range Of product: EasyPact
Product or component type: Circuit breaker
device short name: Easypact EZCIOOH
circuit breaker name: Easypact EZCIOOH
Device application: Distribution
Poles description: 3P
Protected poles description: 31
Network type: AC/DC

Ampere Rating

No of Pole

Clear

Request a Quote

SKU: N/A Categories: Circuit Breakers, Molded Case Circuit Breakers

Additional information

Ampere Rating	15A, 20A, 30A, 40A, 50A, 60A, 80A, 100A
No of Pole	3 Pole

Product Specifications

Range of product	easypact
product or component type	circuit breaker
device short name	easypact ezciooh
circuit breaker name	easypact ezciooh
device application	distribution
poles description	3p
protected poles description	31
network type	ac/dc
[in) rated current	15 a at 40 oc
[uij rated insulation voltage	690 v ac 50/60 hz conforming to iec 60947-2
[uimp] rated impulse withstand voltage	6 kv conforming to iec 60947-2
[uel rated operational voltage	550 v ac 50/60 hz conforming to iec 60947-2 / 250 v dc conforming to iec 60947-2
breaking capacity code	h
breaking capacity	30 ka icu at 380 v ac 50/60 hz
utilisation category	category a
trip unit name	tm-d
trip unit technology	thermal-magnetic
trip unit rating	15 a at 50 oc
protection type	short-circuit protection / overload protection
pollution degree	3 conforming to iec 60664-1 / 3 conforming to iec 947-1
control type	toggle
mounting mode	fixed
mounting support	backplate
upside connection	front
downside connection	front
mechanical durability	8500 cycles
electrical durability	category a
standards	en/iec 60947-1 / jis c8201-2-2 / en/iec 60947-2 / gbit 14048.2
ip degree of protection	ip20 conforming to iec 60529
1k degree of protection	ik07 conforming to iec 62262
ambient air temperature for operation	-25…70 oc
ambient air temperature for storage	-35…85 c

Product Details

EasyPact EZC100H is a 3 poles fixed circuit breaker designed for the protection of low-voltage electrical installations. It is used for standard applications in industries and buildings, offering good performance at a competitive price The breaking capacity (Icu) is 30kA rms at 415VAC 50/60Hz. The operational voltage is 550VAC 50/60Hz or 250VDC. The rating of the thermal-magnetic trip unit is 15A, 20A, 30A, 40A, 50A, 60A, 80A, 100A. The trip unit provides fixed overload and instantaneous protection. This 3 poles version (75mm x 130mm x 60mm) comes with a variety of optional functions and accessories. Easypact EZC100H is compliant with international standards (IEC 60947, UL 508) and marine certifications.
