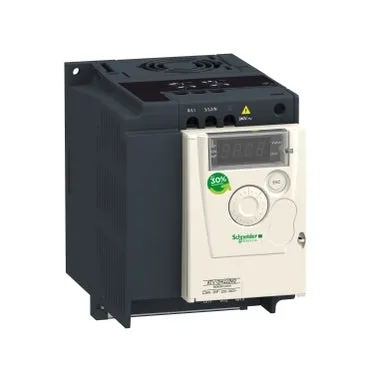

Schneider Variable Speed Drive Altivar 12, 2.2kW, 3hp
- Efficient motor control for 2.2kW (3HP) motors
- Compact design ideal for control panels and limited spaces
- Supports V/F and sensorless vector control
- Integrated protections for overload, overvoltage, and short circuit
- User-friendly display and easy parameter setup
- Energy-saving functionality for lower operational costs
- DIN rail or panel mounting flexibility
- Suitable for OEMs, industrial, and commercial environments
Product Specifications
|
Type
|
altivar (atv)
|
|
power rating
|
2.2kw / 3hp
|
|
input voltage
|
single-phase 200–240v ac (model dependent) three-phase 380–460v ac (model dependent)
|
|
output frequency range
|
0.5–400hz
|
|
control types
|
v/f, sensorless vector
|
|
display type
|
integrated led/lcd
|
|
protection features
|
thermal, overcurrent, undervoltage, and short-circuit
|
|
mounting options
|
din rail or panel
|
|
certifications
|
ce, ul, csa, rohs
|
|
typical applications
|
pumps, fans, conveyors, mixers, hvac systems
|
Product Details
Altivar Machine ATV12 is an offer of variable speed drives for commercial equipment and simple machines. It works at a rated power up to 2.2kW / 3hp and a rated voltage from 200V to 240V AC. It is designed with heatsink for normal environments and fan-cooled enclosure. It has advanced PID and catch on the fly functions, basic cabling, and easy motor control setting. Based on the needs, it can be delivered without heatsink, with embedded EMC filter, or as standard version. The Altivar 12 drive integrates as standard the Modbus communication protocol. This Altivar Machine ATV12 is designed for simple applications, in industry, commercial machines and HVAC machines such as conveyors, pumps, extractors, access barriers and treadmills. It conforms to IEC, UL and other international standards. SoMove software compatibility enables saving and transfering of configurations to spare drive, reducing maintenance downtime. It features an optimized application of power and torque for ventilation and pumping applications, this allows up to 30% energy savings.
