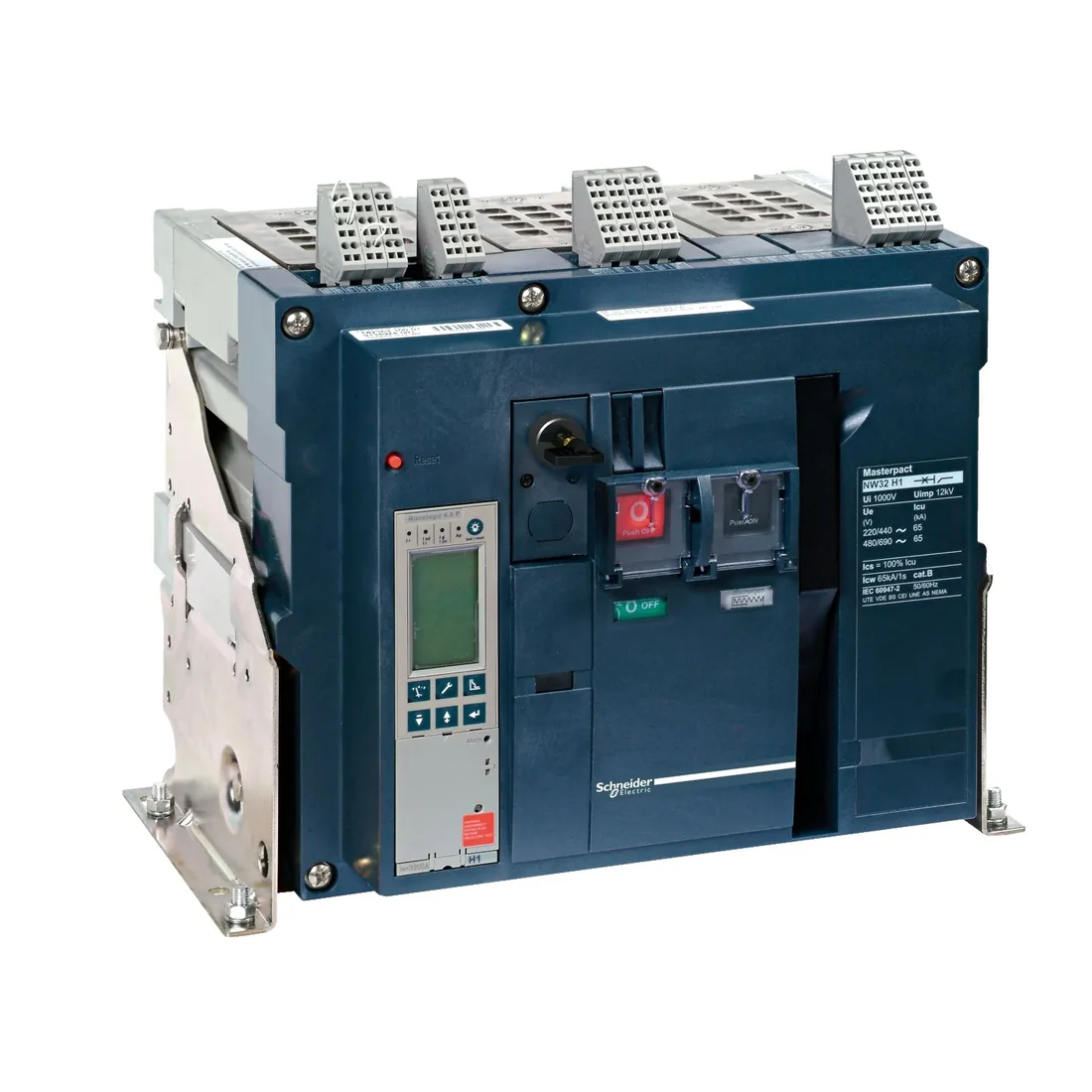

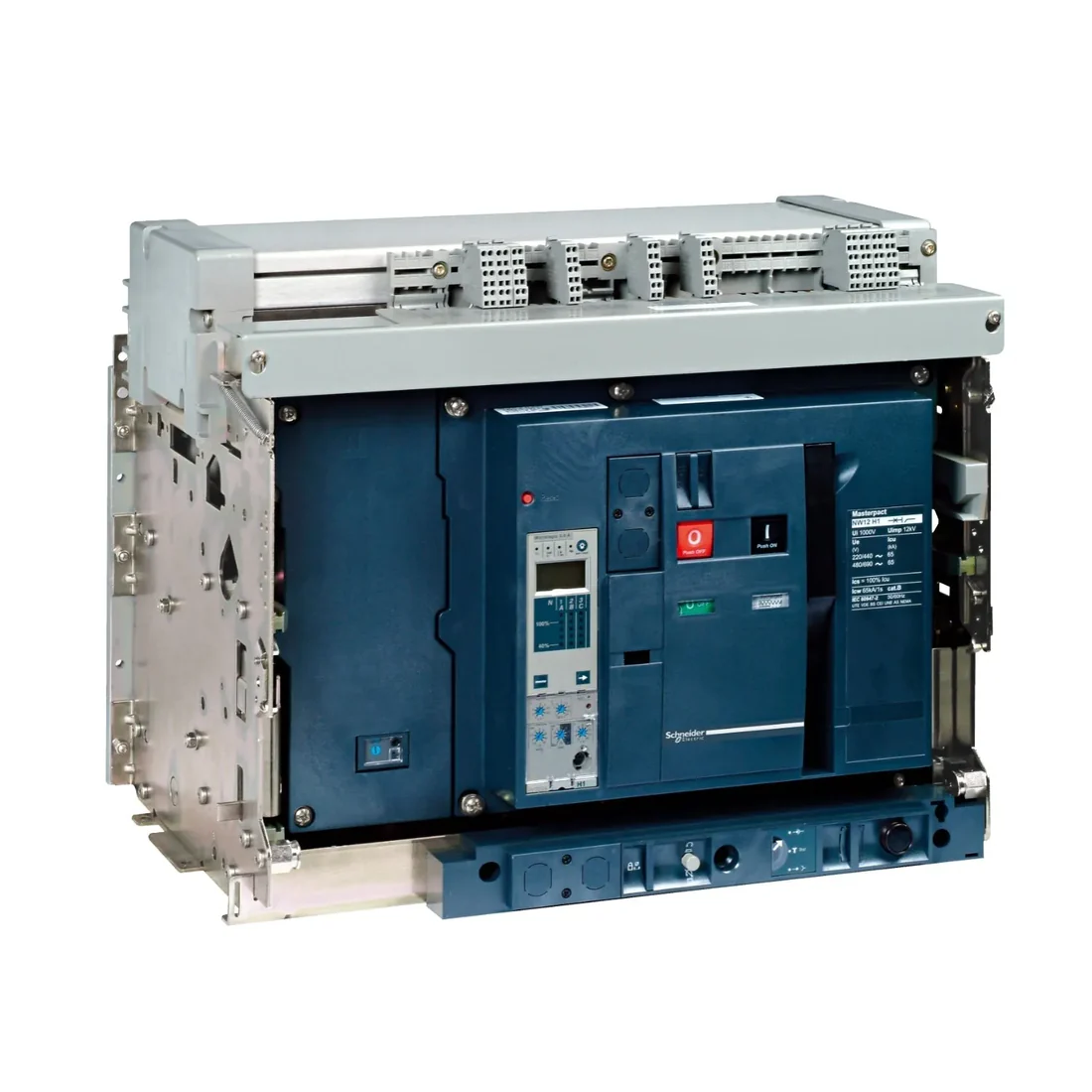

Name: Schneider MasterPact NW32H1 4 Pole 3200A Air Circuit Breaker
SKU: 1733
Availability: InStock

Schneider MasterPact NW32H1 4 Pole 3200A Air Circuit Breaker

~~₨ 2,380,000~~
₨ 1,785,000

Range:MasterPacT
Product name: MasterPact NW
Circuit breaker name: MasterPact NW32H1
Product or component type: Circuit breaker
Device application: Power distribution protection
Net weight: 65 kg
Poles description: 4P
Neutral position: Left
Control unit: Without control unit
Rated current [In] : 3200 A at 40 oc
Performance type: HI 65 kA440 V AC
Rated operational voltage [Ue] : 690 V AC 50/60 Hz

Ampere Rating

No of Pole

Clear

Request a Quote

SKU: N/A Categories: Air Circuit Breakers, Circuit Breakers

Additional information

Ampere Rating	3200A
No of Pole	4 Pole

Product Specifications

Range	masterpact
product name	masterpact nw
circuit breaker name	masterpact nw32h1
product or component type	circuit breaker
device application	power distribution protection
net weight	65 kg
poles description	4p
neutral position	left
control unit	without control unit
rated current [in]	3200 a at 40 oc
performance type	hi 65 ka440 v ac
rated operational voltage [ue]	690 v ac 50/60 hz
suitability for isolation	yes conforming to en/iec 60947-2
selectivity category	category b
control type	push-button
[icu] rated ultimate short-circuit breaking capacity	65ka
[icw] rated short-time withstand current	65 ka 1 s / 36 ka 3 s
sensor rating	1600 a, 3200 a
[ui] rated insulation voltage” 1000 v ac 50/60 hz
[uimp] rated impulse withstand voltage	12 kv
power dissipation in w	170 w
maximum breaking time	25 ms
maximum closing response time	70 ms
mounting support	backplate rails upside connection
downside connection	front rear
ip degree of protection	ip30 conforming to iec 60529
pollution degree	4 conforming to iec 60664-1
ambient air temperature for operation	-25…70 °c
ambient air temperature for storage	-40…85 °c
operating altitude	0…2000 m without derating / 2000 m…5000 m with derating

Product Details

The MasterPact is a high-performance circuit breaker frame designed for electrical distribution systems. With current ratings ranging from 3200A, it offers robust protection with a breaking capacity of 65kA at 440VAC for both 50Hz and 60Hz frequencies (Icu). This 4-pole circuit breaker features a fixed configuration and is specifically designed without a control unit. Its advanced design and reliable performance make it a suitable choice for ensuring the safety and efficiency of electrical systems.
