Schneider MasterPact NW08H2 3 Pole 1600A Air Circuit Breaker
₨ 1,100,000
₨ 825,000
- Range: MasterPacT
- Product name: MasterPact NW
- circuit breaker name: MasterPact NW16H2
- Product or component type: Circuit breaker
- Net weight: 50 kg
- Device application: Power distribution protection
- Poles description: 3P
- Control unit: Without control unit
- Performance type: H2 100 kA 440 V AC
- Selectivity category: Category B
- Control type: Push-button
- Mounting Mode: Fixed
Additional information
| Ampere Ratings | 1600A |
|---|---|
| No of Pole | 3 Pole |
Product Specifications
|
ange
|
masterpact
|
|
product name
|
masterpact nw circuit breaker name
|
|
product or component type
|
circuit breaker
|
|
net weight
|
50 kg
|
|
device application
|
power distribution protection
|
|
poles description
|
3p
|
|
control unit
|
without control unit
|
|
rated current [in]
|
1600 a at 40 °c
|
|
performance type
|
h2 100 ka 440 v ac
|
|
rated operational voltage [ue]
|
690 v ac 50/60 hz
|
|
suitability for isolation
|
yes conforming to en/iec 60947-2
|
|
selectivity category
|
category b
|
|
control type
|
push-button
|
|
mounting mode
|
fixed
|
|
rated ultimate short-circuit breaking capacity [icu]
|
100 ka at 220/415 v ac 50/60 hz / 100 ka at 440 v ac 50/60 hz / 85 ka at 525 v ac 50/60 hz / 85 ka at 690 v ac 50/60 hz
|
|
rated service breaking capacity [ics]
|
100 ka at 220/415 v ac 50/60 hz / 100 ka at 440 v ac 50/60 hz / 85 ka at 525 v ac 50/60 hz / 85 ka at 690 v ac 50/60 hz
|
|
rated short-time withstand current [icw]
|
85 ka 1 s / 50 ka 3 s
|
|
integrated instantaneous protection (din in ka peak)
|
171…209 ka
|
|
sensor rating
|
800 a / 1600 a
|
|
rated insulation voltage [ui]
|
1000 v ac 50/60 hz
|
|
rated impulse withstand voltage [uimp]
|
12 kv
|
|
power dissipation in w
|
170 w
|
|
maximum breaking time
|
25 ms
|
|
maximum closing response time
|
70 ms
|
|
mounting support
|
backplate / rails
|
|
upside connection
|
front / rear
|
|
downside connection
|
front / rear
|
|
mechanical durability
|
12500 cycles without maintenance / 25000 cycles with maintenance
|
|
electrical durability
|
10000 cycles 440 v ac 50/60 hz without maintenance conforming to en/iec 60947-2 / 10000 cycles 690 v ac 50/60 hz without maintenance conforming to en/iec 60947-2 / ac-23a
|
|
standards
|
en/iec 60947-1 / en/iec 60947-2
|
|
ip degree of protection
|
ip30 conforming to iec 60529
|
|
pollution degree
|
4 conforming to iec 60664-1
|
|
ambient air temperature for operation
|
-25…70 °c
|
|
ambient air temperature for storage
|
-40…85 °c
|
|
operating altitude
|
0…2000 m without derating / 2000 m…5000 m with derating
|
Product Details
Schneider MasterPact NW08H2 is a top-tier air circuit breaker, equipped with a 3-pole configuration and an impressive 1600A capacity. Renowned for its reliability and efficiency, this breaker delivers comprehensive electrical protection tailored for industrial applications. Engineered to ensure both safety and stability in electrical systems, it stands out as a powerful solution ideal for demanding environments.
User Manual
Be the first to review “Schneider MasterPact NW08H2 3 Pole 1600A Air Circuit Breaker”
Related products
-
- Air Circuit Breakers, Circuit Breakers
Schneider MasterPact NW20H2 4 Pole 2000A Air Circuit Breaker
-
₨ 1,800,000
₨ 1,350,000 - Select options This product has multiple variants. The options may be chosen on the product page
-
- Air Circuit Breakers, Circuit Breakers

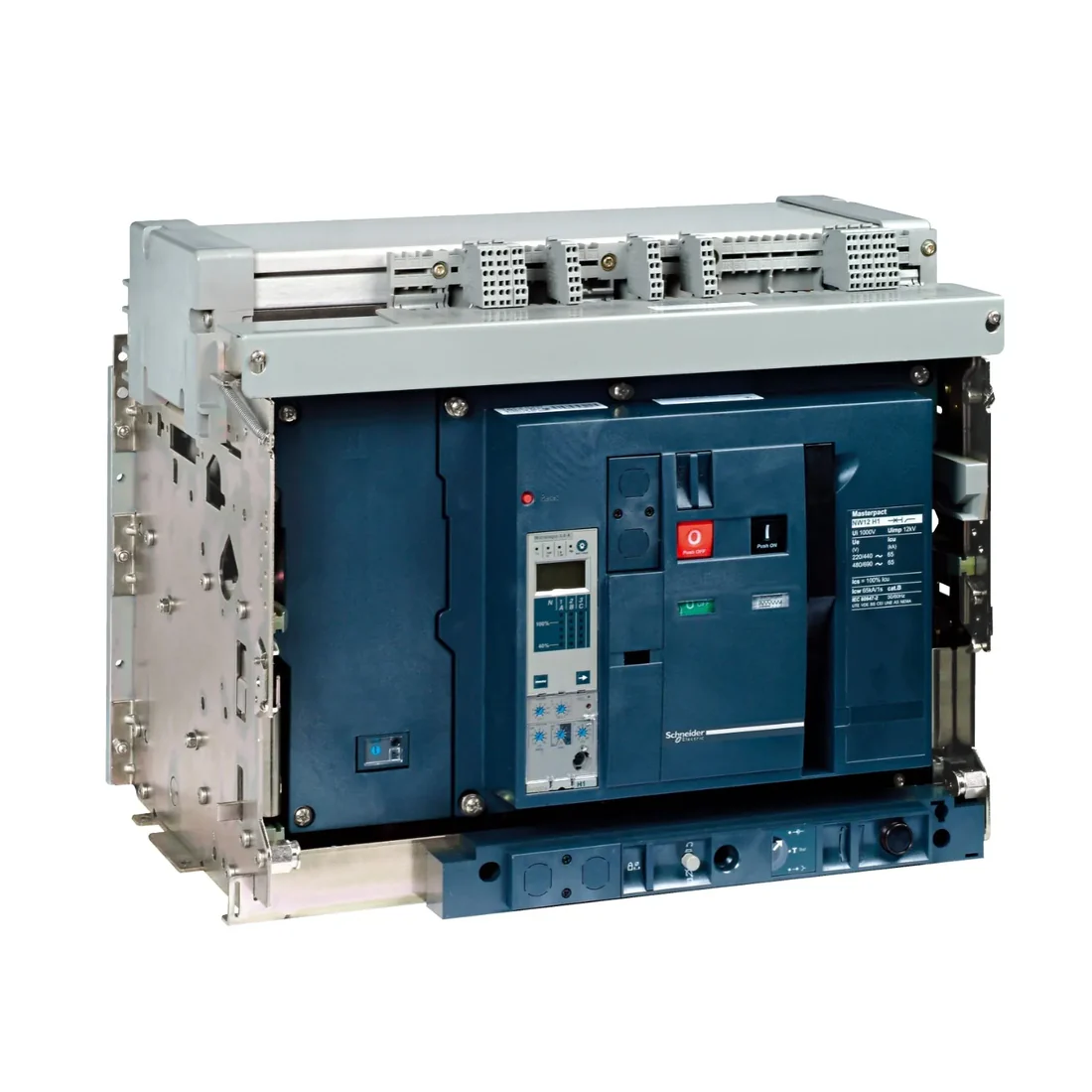

Schneider MasterPact NW10H2 4 Pole 1000A Air Circuit Breaker
-
