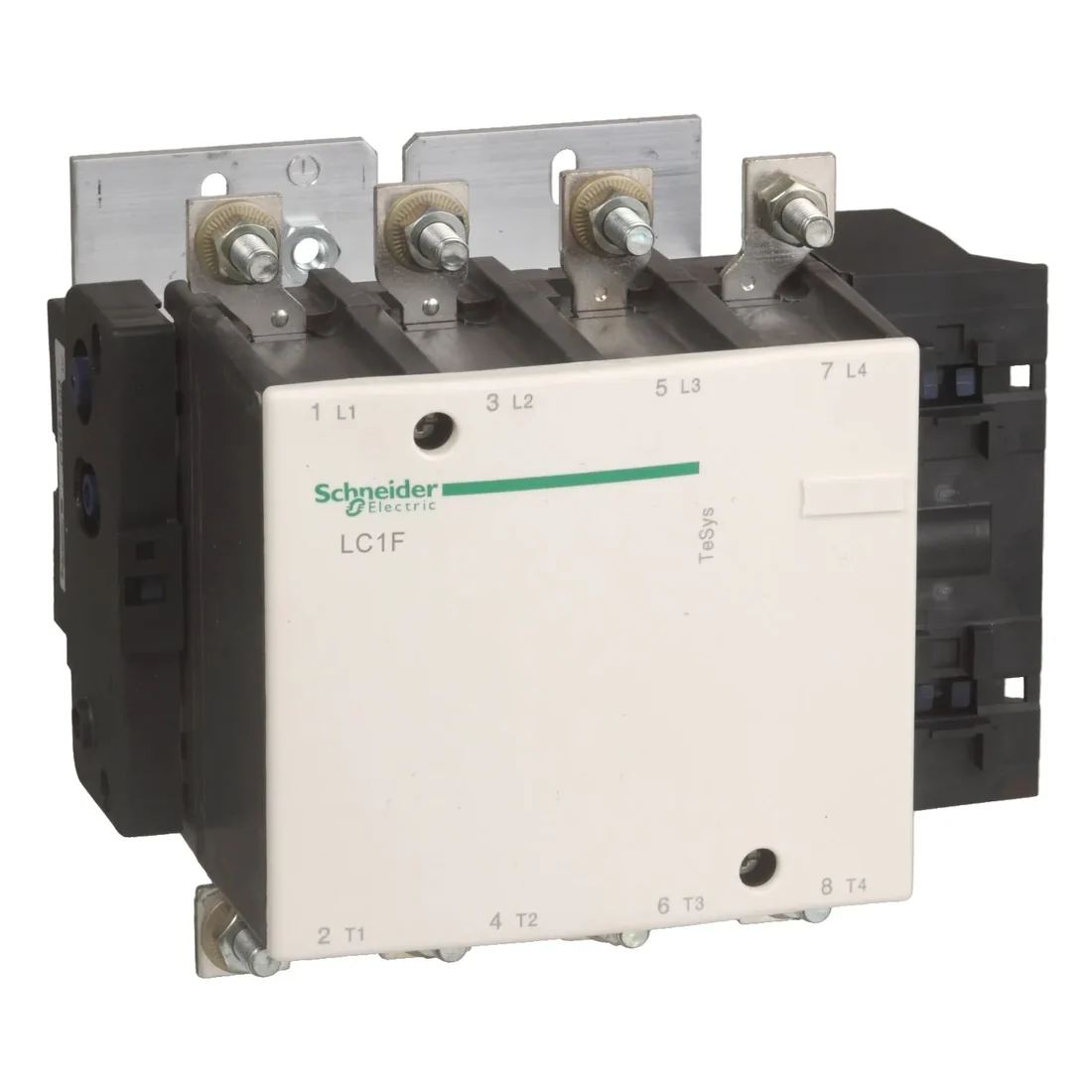

Name: Schneider LC1F4004 TeSys D Contactor, 4P (4 NO) AC-1 500A 440 V AC without coil
SKU: 1313
Availability: InStock

Schneider LC1F4004 TeSys D Contactor, 4P (4 NO) AC-1 500A 440 V AC without coil

~~₨ 340,000~~
₨ 255,000

Range: TeSys
Component Type: Contactor
Device short name: LC1F
Poles description: 4 Pole
Net weight: 8 kg
Pole contact composition: 4 NO
Operational Current Ampere: 400A
Thermal Current Ampere: 500A
Capacity: 220 / 265 KW (HP)

Ampere Rating

No of Pole

Clear

Request a Quote

SKU: N/A Categories: Contactors, Magnetic Contactors and Overload Relays

Additional information

Ampere Rating	500A
No of Pole	4 Pole

Product Specifications

Product name	tesys f
device short name	lc1f
contactor application	resistive load
poles description	4p
net weight	8 kg
thermal current ampere	500a
capacity	220 / 265 kw (hp)
rated operational voltage [ue]	<= 1000 v ac 50/60 hz <= 460 v dc
rated operational current [ie]	500 a (at <40 °c) at <= 440 v ac ac-1
control circuit voltage [uc]	48…1000 v ac 40…400 hz with lx1/lx9 coil / 48…440 v dc with lx4 coil / 100…250 v ac 50/60 hz with lxe coil / 100…380 v dc with lxe coil
compatibility code	lc1f
pole contact composition	4 no
conventional free air thermal current [ith]	500 a (at 40 °c)
rated breaking capacity	3200 a conforming to iec 60947-4-1
average impedance	0.26 mohm – ith 500 a 50 hz
overvoltage category	iii
operating time	40…75 ms closing for with lx1/lx9 coil / 100…170 ms opening for with lx1/lx9 coil / 50…60 ms closing for with lx4 coil / 45…60 ms opening for with lx4 coil / 40…80 ms closing for with lxe coil / 6…54 ms opening for with lxe coil
maximum operating rate	2400 cyc/h 55 °c
mounting support	plate
operating altitude	3000 m without derating

Product Details

TeSys F contactor, 4 poles (4NO), 500A/1000V AC-1, for non-inductive load applications. Contactor with no coil to allow a later selection and installation (coil to be ordered separately), it provides bolt terminals for bars or cables with lugs. For high operating rates until 2400 cycles/hour and environments until 55°C, it procures high reliability and durability. It makes installation and maintenance easy thanks to a drawer for insertion of the selected coil and a large choice of add-on blocks and accessories (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).
