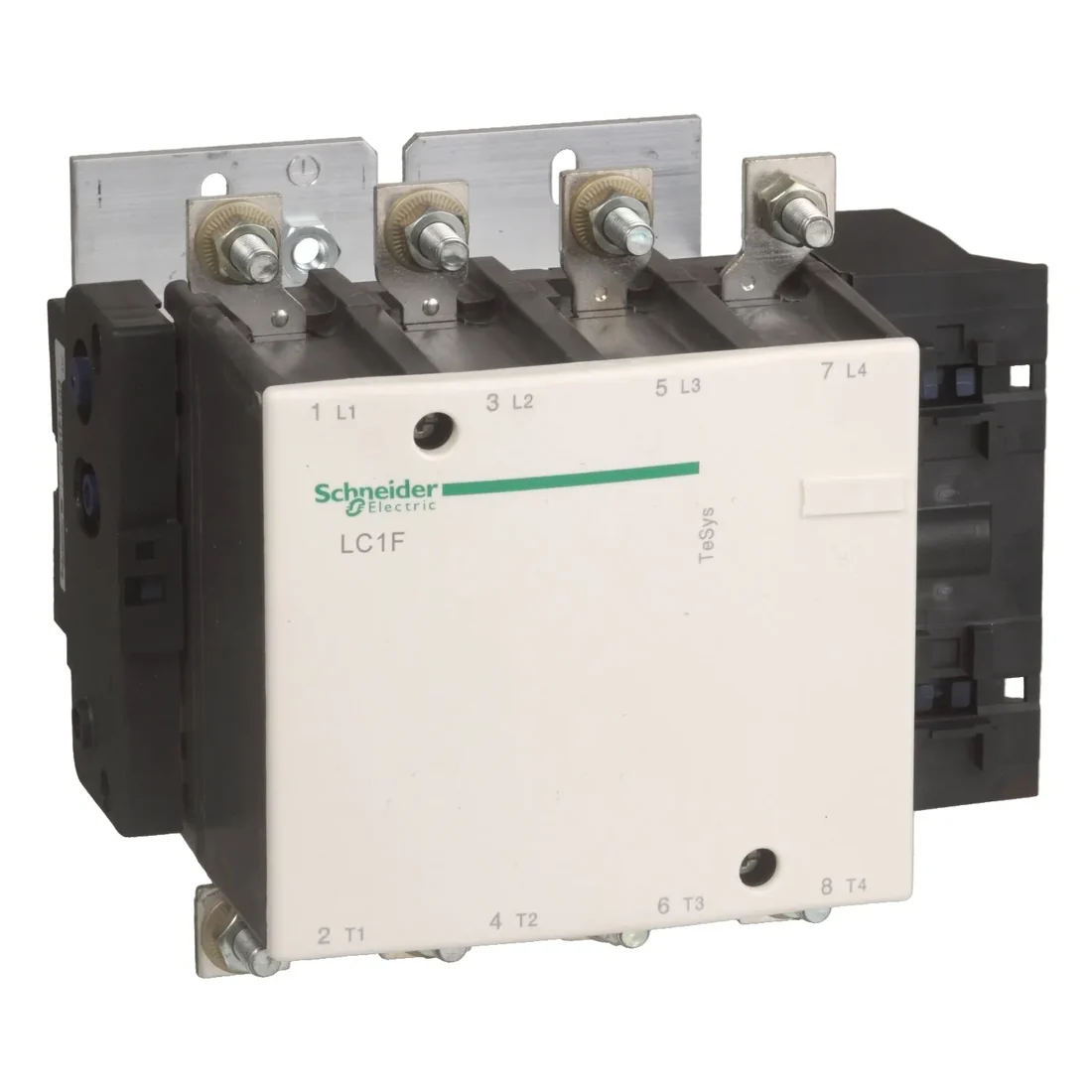

Schneider LC1F1154 TeSys D Contactor, 4P (4 NO) AC-1 200A 440 V AC without coil
₨ 125,000
₨ 93,750
- Range: TeSys
- Component Type: Contactor
- Device short name: LC1F
- Poles description: 4 Pole
- Net weight: 3.83 kg
- Pole contact composition: 4 NO
- Operational Current Ampere: 115A
- Thermal Current Ampere: 200A
- Capacity: 59 / 77 KW (HP)
Additional information
| Ampere Rating | 200A |
|---|---|
| No of Pole | 4 Pole |
Product Specifications
|
Range of product
|
tesys
|
|
component type
|
contactor
|
|
device short name
|
lc1f
|
|
contactor application
|
resistive load
|
|
poles description
|
4p
|
|
net weight
|
3.83 kg
|
|
thermal current ampere
|
200a
|
|
capacity
|
59 / 77 kw (hp)
|
|
rated operational voltage [ue]
|
<= 690 v ac 50/60 hz <= 460 v dc
|
|
rated operational current [ie]
|
200a
|
|
control circuit voltage [uc]
|
220 v ac 50/60 hz
|
|
compatibility code
|
lc1f
|
|
pole contact composition
|
4 no
|
|
conventional free air thermal current [ith]
|
200 a (at 60 °c) for power circuit
|
|
rated breaking capacity
|
920 a conforming to iec 60947-4-1
|
|
average impedance
|
0.37 mohm – ith 200 a 50 hz
|
|
overvoltage category
|
iii
|
|
pollution degree
|
3
|
|
operating time
|
130 ms opening for with lx9 coil / 30…40 ms closing for with lx4 coil / 30…50 ms opening for with lx4 coil / 40…80 ms closing for with lxe coil / 6…54 ms opening for with lxe coil
|
|
maximum operating rate
|
2400 cyc/h 55 °c
|
|
mounting support
|
plate
|
|
operating altitude
|
3000 m without derating
|
Product Details
TeSys F contactor, 4 poles (4NO), 200A/690V AC-1, for non-inductive load applications. Contactor with no coil to allow a later selection and installation (coil to be ordered separately), it provides bolt terminals for bars or cables with lugs. For high operating rates until 2400 cycles/hour and environments until 55°C, it procures high reliability and durability. It makes installation and maintenance easy thanks to a drawer for insertion of the selected coil and a large choice of add-on blocks and accessories (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).
