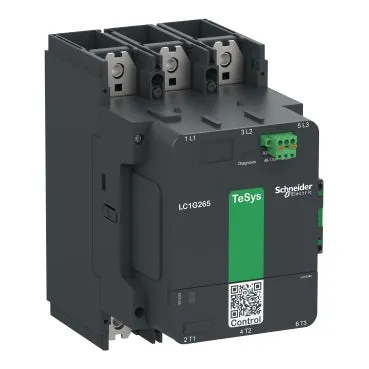

Schneider LC1–G265 TeSys G Contactor, 3P High power contactor

Schneider LC1–G265 TeSys G Contactor, 3P High power contactor

₨ 165,000
₨ 123,750

  • Ideal for large electrical loads in industries.
  • Ensures efficient motor control and power switching.
  • Works with AC and DC circuits in automation and heavy machinery.
  • Optimized coil voltage for energy efficiency.
  • High-quality materials for long-lasting performance.
  • Fits easily into control panels.
  • Meets IEC safety standards.
  • Screw clamp terminals for quick installation.
Request a Quote
SKU: N/A Categories: ,

Additional information

Ampere Rating

185A
No. of Pole

3 Pole

Product Specifications

Range
Tesys
range of product
tesys giga
product or component type
contactor
device short name
lc1g
contactor application
power switching
motor control utilisation category
ac-1 ac-3 ac-3e ac-4 ac-5a ac-5b ac-6a ac-6b ac-8b ac-8a dc-1 dc-3 dc-5
poles description
3p
[ue] rated operational voltage
<= 1000 v ac 50/60 hz <= 460 v dc
[ie] rated operational current
385 a (at <104 °f (40 °c)) at <= 1000 v ac-1 265 a (at <140 °f (60 °c)) at <= 440 v ac-3
[uc] control circuit voltage
48…130 v ac 50/60 hz 48…130 v dc
control circuit voltage limits
operational
[uimp] rated impulse withstand voltage
8 kv
overvoltage category
iii
[ith] conventional free air thermal current
385 a (at 104 °f (40 °c))
rated breaking capacity
2380 a at 440 v
[icw] rated short-time withstand current
2.2 ka – 10 s 1.23 ka – 30 s 0.95 ka – 1 min 0.62 ka – 3 min 0.48 ka – 10 min
associated fuse rating
315 a am at <= 440 v for motor 250 a am at <= 690 v for motor 400 a gg at <= 690 v
average impedance
0.000144 ohm
[ui] rated insulation voltage
1000 v
power dissipation per pole
20 w ac-1 – ith 385 a 11 w ac-3 – ith 265 a
compatibility code
lc1g
pole contact composition
3 no
auxiliary contact composition
1 no + 1 nc
maximum horse power rating
75 hp at 200/208 v 60 hz 100 hp at 230/240 v 60 hz 200 hp at 460/480 v 60 hz 200 hp at 575/600 v 60 hz
irms rated making capacity
3320 a at 440 v
coil technology
built-in bidirectional peak limiting
safety reliability level
b10d = 400000 cycles contactor with nominal load en/iso 13849-1 b10d = 3000000 cycles contactor with mechanical load en/iso 13849-1
mechanical durability
8 mcycles
inrush power in va (50/60 hz, ac)
780 va
inrush power in w (dc)
695 w
hold-in power consumption in va (50/60 hz, ac)
17.6 va
hold-in power consumption in w (dc)
7.8 w
operating time
40…70 ms closing 15…50 ms opening
maximum operating rate
600 cyc/h ac-3 600 cyc/h ac-3e 300 cyc/h ac-1 150 cyc/h ac-4
connections – terminals
power circuit
connection pitch
1.8 in (45 mm)
mounting support
plate
standards
en/iec 60947-4-1 en/iec 60947-5-1 ul 60947-4-1 csa c22.2 no 60947-4-1 jis c8201-4-1 jis c8201-5-1 iec 60335-1
tightening torque
309.8 lbf.in (35 n.m)
height
8.9 in (225 mm)
width
5.5 in (140 mm)
depth
8.9 in (226 mm)
net weight
15.4 lb(us) (7 kg)

Product Details

The Schneider LC1-G265 TeSys G Contactor is a high-performance 3-pole (3P) power contactor designed for demanding industrial applications. Engineered for superior reliability, this contactor efficiently handles power switching and motor control in AC and DC circuits. Its durable construction ensures long-lasting operation, making it ideal for heavy-duty machinery, automation systems, and power distribution networks. The compact design allows for easy integration into control panels, while its compliance with international safety standards guarantees secure and efficient performance. With optimized coil voltage and robust electrical endurance, the LC1-G265 delivers stable operation even under challenging conditions.

User Manual

LC1G265EHEN.pdf
