Schneider LC1–G225 TeSys G Contactor, 3P High power contactor
₨ 165,000
₨ 123,750
- High Power Handling Designed for demanding applications with superior performance.
- Reliable 3P Configuration Ensures efficient power distribution and motor control.
- Versatile Applications Suitable for AC and DC circuits in industrial automation.
- Optimized Coil Voltage Ensures stable operation with efficient power usage.
- Durable & Long-Lasting Built for extended electrical and mechanical life. Compact & Space-Saving Easy integration into control panels.
- Safety Compliant Conforms to IEC standards for secure operation.
- Easy Installation Screw clamp terminals allow secure and hassle-free wiring.
Additional information
| Ampere Rating | 185A |
|---|---|
| No of Pole | 3 Pole |
Product Specifications
|
Range
|
tesys
|
|
range of product
|
tesys giga
|
|
product or component type
|
contactor
|
|
device short name
|
lc1g
|
|
contactor application
|
power switching motor control
|
|
utilisation category
|
ac-1 ac-3 ac-3e ac-4 ac-5a ac-5b ac-6a ac-6b ac-8b ac-8a dc-1 dc-3 dc-5
|
|
main range tesys range of product tesys giga product or component type contactor device short name lc1g contactor application power switching motor control utilisation category ac-1 ac-3 ac-3e ac-4 ac-5a ac-5b ac-6a ac-6b ac-8b ac-8a dc-1 dc-3 dc-5 poles description
|
3p
|
|
[ue] rated operational voltage
|
<= 1000 v ac 50/60 hz <= 460 v dc
|
|
[ie] rated operational current
|
330 a (at <40 °c) at <= 1000 v ac-1 225 a (at <60 °c) at <= 440 v ac-3
|
|
[uc] control circuit voltage
|
200…500 v ac 50/60 hz 200…500 v dc
|
|
control circuit voltage limits
|
Operational
|
|
[uimp] rated impulse withstand voltage
|
8 kv
|
|
overvoltage category
|
iii
|
|
rated breaking capacity
|
2050 a at 440 v
|
|
[icw] rated short-time withstand current
|
1.8 ka – 10 s 1.0 ka – 30 s 0.85 ka – 1 min 0.56 ka – 3 min 0.44 ka – 10 min
|
|
associated fuse rating
|
250 a am at <= 440 v for motor 200 a am at <= 690 v for motor 400 a gg at <= 690 v
|
|
average impedance
|
0.00015 ohm
|
|
[ui] rated insulation voltage
|
1000 v
|
|
power dissipation per pole
|
20 w ac-1 – ith 330 a 8 w ac-3 – ith 225 a
|
|
compatibility code
|
lc1g
|
|
pole contact composition
|
3 no
|
|
auxiliary contact composition
|
1 no + 1 nc
|
|
motor power kw
|
55 kw at 230 v ac 50/60 hz (ac-3e) 110 kw at 400 v ac 50/60 hz (ac-3e) 110 kw at 415 v ac 50/60 hz (ac-3e) 132 kw at 440 v ac 50/60 hz (ac-3e) 132 kw at 500 v ac 50/60 hz (ac-3e) 160 kw at 690 v ac 50/60 hz (ac-3e) 132 kw at 1000 v ac 50/60 hz (ac-3e) 55 kw at 230 v ac 50/60 hz (ac-3) 110 kw at 400 v ac 50/60 hz (ac-3) 110 kw at 415 v ac 50/60 hz (ac-3) 132 kw at 440 v ac 50/60 hz (ac-3) 132 kw at 500 v ac 50/60 hz (ac-3) 160 kw at 690 v ac 50/60 hz (ac-3) 132 kw at 1000 v ac 50/60 hz (ac-3) 55 kw at 230 v ac 50/60 hz (ac-4) 110 kw at 400 v ac 50/60 hz (ac-4) 110 kw at 415 v ac 50/60 hz (ac-4) 129 kw at 440 v ac 50/60 hz (ac-4) 132 kw at 500 v ac 50/60 hz (ac-4) 132 kw at 690 v ac 50/60 hz (ac-4) 110 kw at 1000 v ac 50/60 hz (ac-4)
|
|
motor power hp
|
60 hp at 200/208 v 60 hz 75 hp at 230/240 v 60 hz 150 hp at 460/480 v 60 hz 150 hp at 575/600 v 60 hz
|
|
coil technology
|
built-in bidirectional peak limiting
|
|
safety reliability level
|
b10d = 400000 cycles contactor with nominal load conforming to en/iso 13849-1 b10d = 3000000 cycles contactor with mechanical load conforming to en/iso 13849-1
|
|
mechanical durability
|
8 mcycles
|
|
inrush power in va (50/60 hz, ac)
|
295 va
|
|
inrush power in w (dc)
|
215 w
|
|
hold-in power consumption in va (50/60 hz, ac)
|
13.0 va
|
|
hold-in power consumption in w (dc)
|
8.0 w
|
|
operating time
|
40…70 ms closing 15…50 ms opening
|
|
maximum operating rate
|
600 cyc/h ac-3 600 cyc/h ac-3e 300 cyc/h ac-1 150 cyc/h ac-4
|
|
connections – terminals
|
power circuit
|
|
connection pitch
|
35 mm
|
|
mounting support
|
plate
|
|
standards
|
en/iec 60947-4-1 en/iec 60947-5-1 ul 60947-4-1 csa c22.2 no 60947-4-1 jis c8201-4-1 jis c8201-5-1 iec 60335-1
|
|
tightening torque
|
18 n.m
|
|
height
|
255 mm
|
|
width
|
108 mm
|
|
depth
|
193 mm
|
|
net weight
|
4.1 kg
|
Product Details
The Schneider LC1-G225 TeSys G is a high-power 3P contactor designed for reliable motor control and power switching in industrial applications. Engineered for durability and efficiency, it ensures safe operation with a robust design that meets international safety standards.
Be the first to review “Schneider LC1–G225 TeSys G Contactor, 3P High power contactor”
Related products
-
- Contactors, Magnetic Contactors and Overload Relays
Schneider LC1D18 TeSys D Contactor, 3P (3 NO) AC-3 18 A 220 V AC Coil
-
₨ 8,500
₨ 6,375 - Select options This product has multiple variants. The options may be chosen on the product page
-
- Magnetic Contactors and Overload Relays, Overload Relays
Schneider LRD3365 TeSys Deca Thermal Overload Relay – 80…104 A
-
₨ 38,000
₨ 28,500 - Select options This product has multiple variants. The options may be chosen on the product page
-
- Magnetic Contactors and Overload Relays, Overload Relays

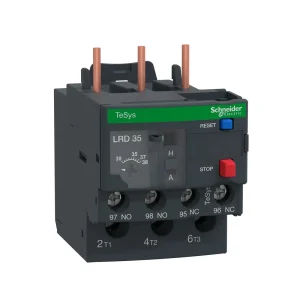

Schneider LRD35 TeSys Deca Thermal Overload Relay – 30…38 A
-
